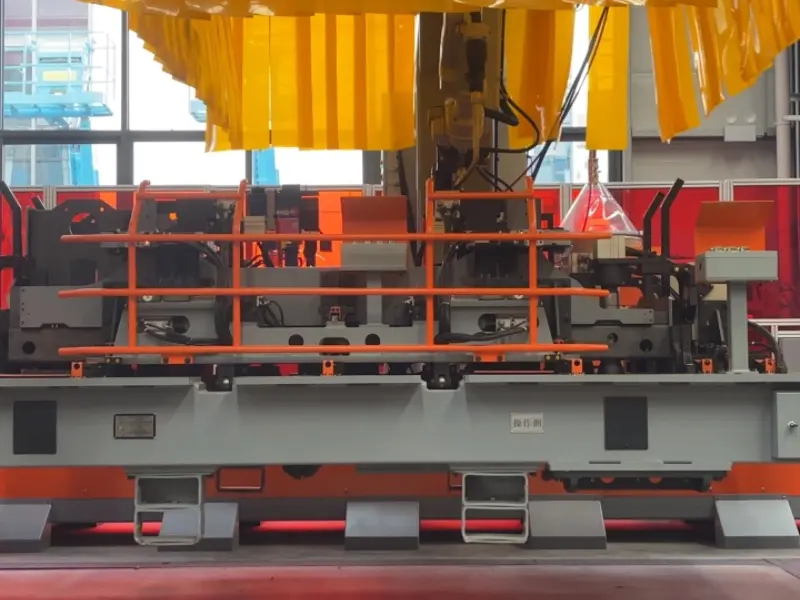

The Patch Plate Welding Workstation constitutes a critical automated station in the main welding process for the scissor arms of aerial work platforms. Its primary function involves the precise positioning, assembly, and continuous welding of the scissor arm web plates to various attachments—including cover plates, reinforcing patch plates, and ear plate mounts. By ensuring the structural integrity, rigidity, and fatigue life of the scissor mechanism, this workstation serves as the core unit within the entire scissor lift production line for achieving high-efficiency, low-deformation, and high-quality welding.
Inquire Now Contact Us
Ensuring the overall strength, rigidity, and fatigue life of the scissor structure, it serves as the core unit within the entire scissor production line for achieving high-efficiency, low-deformation, and high-quality welding.

Main Features

  • Achieving Automated Clamping, Positioning, and Welding of Scissor-Arm Plate-Type Parts
  • Complete the welding of the cover plates to the web plates, stiffeners, hinge seats, and other components—specifically, the long straight welds and fillet welds.
  • In conjunction with a positioning mechanism, it enables multi-angle, all-position welding of workpieces.
  • Stably control welding deformation to ensure dimensional consistency and interchangeability of the scissor arms.

Share:

  • Detailed Description

Process Flow

Process Flow

Leveraging its expertise in welding, the company has collaborated with numerous prominent enterprises within the industry.

General CharacteristicsIP and IK RatingIp54,lk08
Operating Altitude≤2000m
